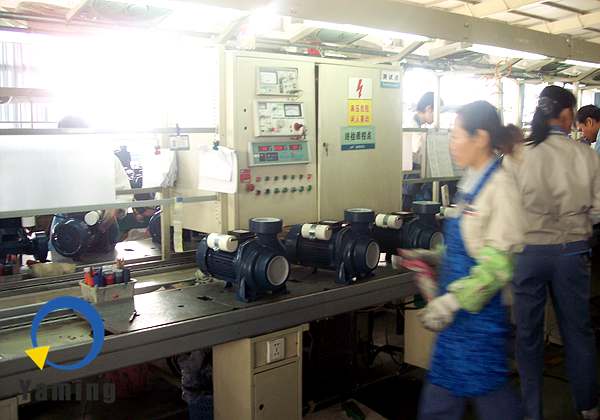

Water pump assembly line

1. Water Pump Classification and Assembly Requirement Differences

As core general machinery for fluid conveyance, water pumps are divided into three categories according to application scenarios and performance requirements. The structural characteristics and sealing requirements of different categories directly determine the process configuration logic of the Water Pump Assembly Line:

• Civil Pumps: Covering domestic booster pumps and clean water pumps, mainly serving community water supply and agricultural irrigation scenarios, with a unit weight of 5-30kg and an annual demand of over 100 million units. The core assembly difficulty lies in the installation precision of mechanical seals and dynamic balance calibration of impellers, requiring the assembly line to have high capacity and stable consistency for mass production.
• Industrial Pumps: Including chemical process pumps, sewage pumps and fire pumps, which need to withstand corrosive media and high-pressure working conditions (maximum pressure up to 10MPa). The core assembly difficulty lies in the sealing of flow-through components and coaxiality control of the pump body, requiring the assembly line to have high-precision positioning capability to meet strict industrial reliability standards.
• Special Pumps: Covering submersible pumps and deep well pumps for underwater operation, the core assembly difficulty lies in overall waterproof sealing and insulation treatment of cable joints, requiring the assembly line to be equipped with dedicated sealing test stations to ensure long-term operational reliability in deep-water environments.

2. Core Conveying System of Water Pump Assembly Line (Double-speed Chain)

This series of Water Pump Assembly Lines adopts a double-speed chain conveyor​ as the core ground conveying carrier, specially designed for the precision assembly of small and medium-sized water pumps (such as domestic clean water pumps and small submersible pumps):

The double-speed chain uses a 3x speed roller chain for transmission. The tooling pallet runs smoothly with a workstation positioning accuracy of ±0.5mm and an operating vibration amplitude of ≤0.03mm, avoiding assembly deviation caused by the shaking of precision components during the impeller and pump shaft marriage (coaxiality requirement ≤0.02mm). The line body adopts an accumulation design: the tooling pallet carries semi-finished products such as pump bodies and control panels, transferring linearly along the guide rail. When the pallet reaches the corresponding workstation, the photoelectric sensor triggers a stopper to stop the pallet automatically, allowing workers to complete precision assembly in a static environment.

The tooling pallet adopts a customized design, with dedicated positioning grooves designed according to the pump body size (such as DN50, DN100 specifications) to ensure the pump body does not shake or shift during transportation. The line running speed can be adjusted via variable frequency within the range of 0.8-3m/min, flexibly matching the operation rhythm of different assembly workstations (e.g., it takes 3 minutes to install seals for each water pump), realizing balanced takt time of the whole line. Compared with conveying solutions such as plate chains and roller conveyors, the high-precision and low-vibration characteristics of the double-speed chain make it more suitable for the precision assembly requirements of water pumps, making it the mainstream choice for mass production lines of small and medium-sized water pumps.

3. Core Process Flow of Water Pump Assembly Line

The Water Pump Assembly Line connects each assembly and testing workstation through the conveying system, realizing full-process automation from component loading to finished product off-line:

1. Pump Body Pre-treatment: Complete pump body cleaning and anti-rust treatment, and inspect the precision of key mating surfaces to ensure no impurities and no bumps.
2. Impeller and Pump Shaft Assembly: Precisely press-fit the impeller and pump shaft, controlling the coaxiality within ≤0.02mm, and complete dynamic balance calibration with unbalance ≤1g·cm.
3. Mechanical Seal Installation: Complete the assembly of mechanical seal components in a constant temperature and humidity environment, ensuring the sealing surface fit rate ≥95% with no leakage risk.
4. Pump Body and Motor Marriage: Accurately dock the pump body with the drive motor, complete bolt tightening with a torque error ≤±2%, and upload all data for 100% traceability.
5. Performance Testing: Complete 12 testing items sequentially, including pressure resistance testing (maximum test pressure is 1.5 times the rated pressure), flow-head curve testing, sealing performance testing, and insulation resistance testing, with unqualified products rejected in real time.
6. Finished Product Packaging and Off-line: Qualified pump bodies are protected with packaging, labeled, palletized, and transferred to the finished product warehouse.

4. Core Advantages of Automated Water Pump Assembly Line

• Significantly Improved Assembly Efficiency: The Water Pump Assembly Line supports 24-hour continuous stable operation, with single-shift capacity increased by 50%-100% compared with traditional manual assembly, flexibly matching order demands of different scales.
• Stable and Controllable Product Quality: Assembly precision is guaranteed by equipment, with the first-pass product yield increased from 92% of manual assembly to over 99.5%, meeting the quality requirements of civil, industrial and special pumps, and greatly reducing after-sales quality costs.
• Significant Reduction in Comprehensive Costs: A single Water Pump Assembly Line can reduce the demand for front-line operation positions by 50%-80%, lowering long-term labor costs. Equipment energy consumption is reduced by 15%-20% compared with traditional production lines, and after-sales costs caused by quality problems are reduced by over 60%.
• Outstanding Flexible Production Capability: By quickly adjusting robot programs and testing parameters, model changeover between different water pump models (such as switching from DN50 pump to DN100 pump) can be completed within 1-2 hours, adapting to customized production demands of multi-variety and small-batch orders.

5. Reference Technical Parameters
