Do you know how long it takes to build a switchgear assembly line?

1. Line Overview

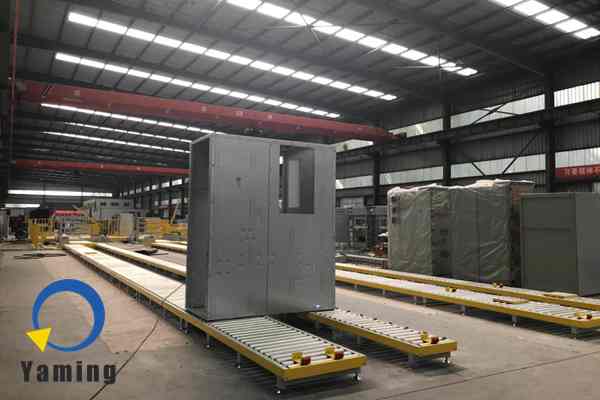

The image shows a heavy-duty powered roller conveyor-based switchgear assembly line deployed in a spacious steel-frame workshop. The line consists of multiple segments of yellow-framed roller conveyors connected end-to-end, with galvanized steel rollers forming the carrying surface. The working height is ergonomically optimized for standing operators. A gray switchgear cabinet—with its main frame already installed—rests steadily on the conveyor. The cabinet surface shows pre-cut openings for instrument windows, ventilation grilles, and door lock mounting positions. Side busbar interfaces are visible, conveying the robust industrial character typical of electrical power equipment.

The workshop ceiling is equipped with long-array LED lighting and red overhead crane rails, which support the hoisting and transfer of heavy cabinets. Ample logistics corridors flank both sides of the line. In the distance, packaged finished cabinets are stacked in the dispatch area, forming a complete production flow: “assembly → testing → offline → shipping.”

2. Process Flow: Six Core Stages

① Frame Loading

After CNC punching, shearing, bending, welding, and powder coating, the cabinet frame is delivered to the start of the line by forklift or overhead crane. Operators visually inspect for dents or deformation before pushing the frame onto the roller conveyor. A photoelectric sensor at the line entrance detects the cabinet’s presence and triggers the conveyor start signal.

② Component Assembly

This is the most time-consuming stage of the entire line. Core components—including circuit breaker trucks, disconnect switches, current transformers, and surge arresters—are picked according to the BOM and delivered to each assembly station by AGV or manual cart. Operators secure components using overhead tool trolleys and air-screwdriver carriages. Critical fastening points use torque-controlled electric screwd
