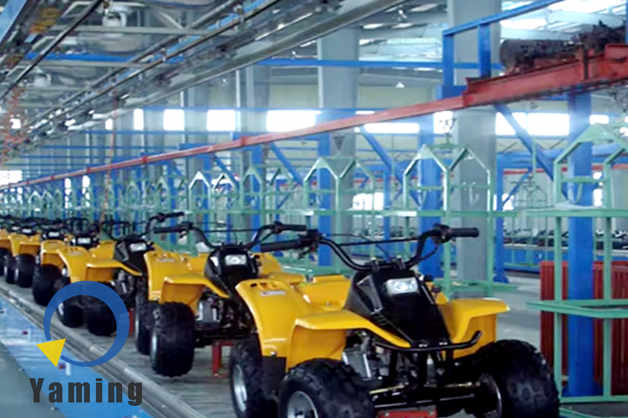

The picture shows the complete‑vehicle final‑assembly site for all‑terrain vehicles (ATVs). The whole line takes the floor‑mounted slat chain conveyor as the main assembly carrier. Multiple yellow ATVs are neatly arranged on the tooling pallets of the slat chain and move sequentially through workstations along the production line to complete full‑vehicle assembly.
This type of ATV production line adopts slat chain conveying, which adapts to the working conditions of all‑terrain vehicle complete‑vehicle assembly. The slat structure features high load‑bearing capacity to support the full weight of ATV units and resist assembly impact at workstations. It delivers stable operation cycles and meets the requirements for continuous mass assembly of finished vehicles. The production line is equipped with an overhead hanging conveying system, namely the red and green hanging mechanisms at the top of the picture. It enables overhead delivery of large‑size components such as engines and frames, directly feeding materials to assembly stations, reducing ground‑handling workload in the workshop, and realizing a three‑dimensional production layout combining ground‑based final assembly and overhead material supply.
In terms of production processes, after frames are fed onto the line, procedures including powertrain installation, running gear assembly, wiring and pipeline layout, exterior part fitting, and full‑vehicle commissioning and inspection are carried out in sequence. The slat chain runs step‑by‑step at a preset speed, and corresponding operations are performed at each workstation simultaneously. Finished ATVs leave the line after completing all assembly processes along the line.
Given the complex structure and wide variety of parts of ATV products, this slat‑chain final‑assembly line provides assembly compatibility to support mixed‑model production of multiple ATV specifications. It serves as a mainstream complete‑vehicle assembly solution for domestic ATV manufacturers, greatly improving full‑vehicle assembly efficiency and ensuring consistency in mass production.
1. ATV assembly line system
- The all-terrain vehicle assembly line is an all-terrain vehicle production process. Each production link is carried out in a certain order and rhythm. Through automated equipment and transportation systems, parts and components can complete a series of operations such as assembly and testing on the assembly line, and finally form a complete product. production system. The assembly line engineering of all-terrain vehicles is a complex manufacturing process that needs to take into account off-road performance, durability, safety and comfort.
2.ATV assembly line type
- Plate chain assembly line: It is efficient, simple, economical and practical. It can be equipped with hanging and conveying material accessories. It is often used in the assembly line of all-terrain vehicles.
- Ground-rail RGV assembly line: Automatic operation, high flexibility, 360-degree operation, unique lifting mechanism can improve production efficiency.
3.Advantages of all-terrain vehicle assembly line
- Plate chain assembly line:
- The structure is relatively simple and the manufacturing and maintenance costs are low. No complex control system is required, it is quick to start, easy to operate and manage.
- The length of the assembly line and station layout can be adjusted according to production needs, and the suspension conveying system can be equipped to achieve simultaneous supply of materials. It is suitable for the general assembly of small and medium-sized machinery such as all-terrain vehicles, and suitable for multi-variety and small-batch production models.
- The assembly line is flat conveying, and workers can carry out multi-position operations around both sides of the plate chain. The operation is convenient and suitable for assembly links that require more manual participation (such as parts fastening, line connection, etc.).
- Ground-rail RGV assembly line:
- With high degree of automation and excellent production efficiency, RGV automatically runs along the ground rail, reducing manual handling and reducing labor costs. Each RGV unit operates independently and does not interfere with each other, which can achieve continuous production and improve overall beat efficiency.
- The ground rail is combined with a unique lifting mechanism to realize the lifting and rotation of workpieces, which is convenient for workers to assemble from different angles (such as installation of chassis components, fixing of high-altitude parts, etc.). It is especially suitable for precision assembly of all-terrain vehicles.
- The ground-rail structure has strong load-bearing capacity, can carry heavier workpieces (such as all-terrain vehicle frames or complete machines), and can adapt to complex environments such as dust and oil stains in the workshop, with high operating stability.
